Chart of the V-Belt Configurations
Click an image to enlarge it.
 |
 |
 |
|

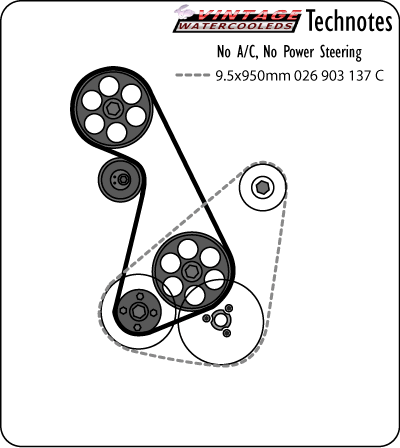

No A/C, No Power Steering |

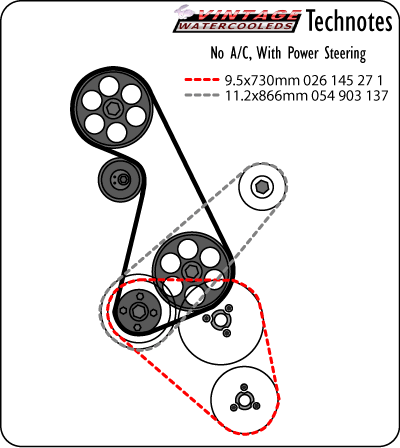

No A/C, with Power Steering |

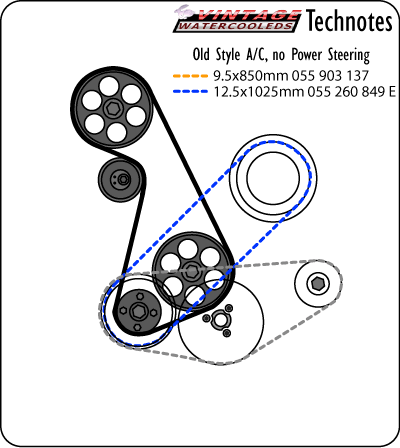

Old Style A/C, No Power Steering |
 |
 |
 |
|
Old Style A/C, with Power Steering |

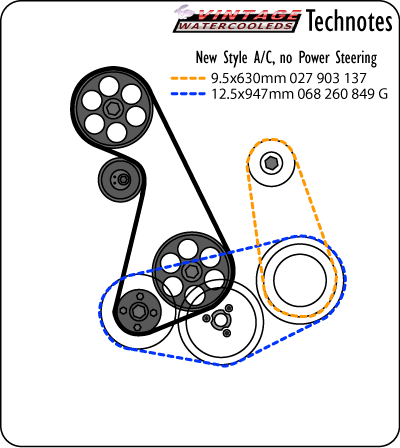

New Style A/C, No Power Steering |

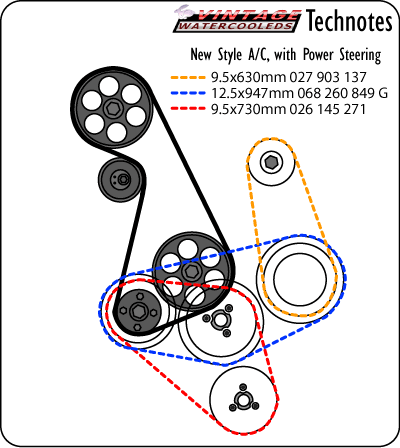

New Style A/C, with Power Steering |
 |
 |
 |
|

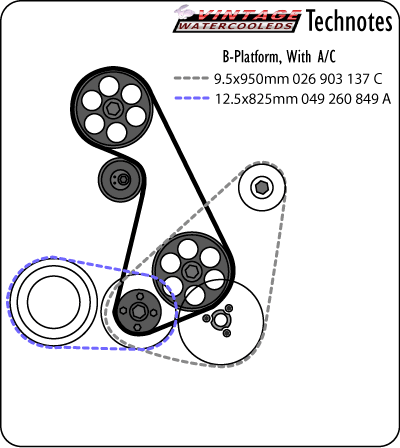

B Platform With A/C |
B Platform With A/C and Power Steering |

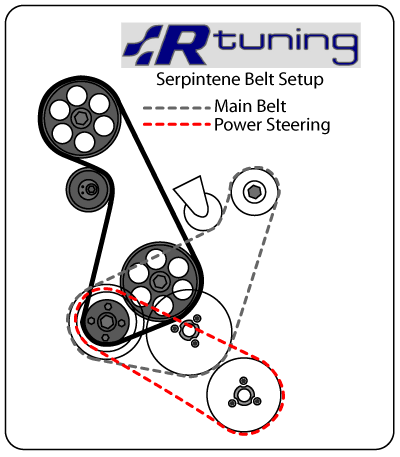

R Tuning's Serpentine Belt setup with optional Power Steering shown |
