Introduction

Megasquirt is a Do-it-yourself Engine Management computer.

Megasquirt allows you to have complete control over your engine, no matter what modifications you have made, or will make to it.

Megasquirt is an ideal project for someone who likes electronic kits, wiring, or computers in general. Amazingly the wiring for Megasquirt is not much more complicated then wiring for headlight relays.

The best part about Megasquirt is that one can get the project done and the car running for less than $500.

Don't do this if you are not comfortable with wiring, soldering, tuning with a computer in your car, or anything like that.

Also - don't try this if you live in California - as I imagine - it's probably illegal there!

Back to Top

Common Terminology used in these technotes...

CIS - this is the Bosch Continuous Injection System we are replacing. It works by a mechanical MAF sensor that opens a valve to inject fuel into the engine.

CPU - Central Processing Unit - refers to the Megasquirt chip itself

DB37 - This is the main 37 Pin connector on Megasquirt.

DB9 - this is the Serial communications and tuning port on Megasquirt. It is used for tuning, and is not used during normal running.

ECU - Engine Control unit - Many manufacturers call it an ECM - engine control Module, or PCM for Powertrain Control Module.

EFI - Electronic Fuel Injection

F_IDLE - this is Megasquirt terminology for the Fast Idle Solenoid, which boosts idle speed when the car has not warmed-up.

Hall Sender - The magnetic pickup used in VW distributors for RPM detection, there are 3 wires, power, Ground and the signal

MS - Shorthand for Megasquirt

Megasquirt I or MS1 - This refers to the 68HC908 CPU made my Motorola and flashed with Megasquirt I Code.

Megasquirt II or MS2 - This refers to the faster MC9S12C64 CPU made my Motorola and flashed with Megasquirt II code.

MSnS-e - Megasquirt 'n Spark -Extra - this is special code for the Megasquirt I chip that extends it's capabilities further, and gives it features comparable to the Megasquirt II chip.  This code does NOT work on a Megasquirt II chip though.  The code works with both versions of the PCB.

MT - Shorthand for Megatune

MegaLogViewer - this is a program that you use to analyze Megasquirt Logs taken in Megatune while driving the car. It can adjust your fuel maps based on oxygen sensor readings.

MegaTune - this is the program you install on your laptop to tune the Megasquirt ECU

PCB - Printed Circuit Board - this is the green board that is inside Megasquirt - there are currently two different versions. The V3 board is more robust and has many more built in options, but more expensive. The V2.2 board is inexpensive, and simpler than the V3

TPS - Throttle Position Sensor - it's a 3 wire variable resistor mounted on the throttle plate to detect the position of the throttle.

USB Serial Adapter - This connects your tuning laptop to the Megasquirt unit. Most computers made after 1998 have USB ports.

V2.2 PCB - This is the earlier version of the Circuit board available. It does not have any advanced features, but it is simple and inexpensive.

V3 PCB - this is the later more advanced version of the circuit board. It adds flyback injector circuits to be able to run low impedance injectors like those available in the aftermarket, it adds more robust components and circuit protection, it has a 4 layer board that shields signals from external interference, it has a VR sensor circuit, a large heat sink, and best of all, a built in ignition coil driver. The disadvantage is that the board costs more, and is a lot more complicated to build.

V3.57 PCB - this is an advanced version of the V3 board that uses surface mounted components and is not generally available to DIY users. You can buy a pre-assembled one though.

Vref - this is the 5 volt reference signal that comes out of the Megasquirt. You can connect it to the TPS and the Hall Sender for power. It gives a VERY accurate regulated signal for Megasquirt to measure things by.

Back to Top

Component List

Here is a list of parts needed for a Megasquirt conversion:

• The Megasquirt ECU itself
• Wire of different colors in 18 or 20 gauge
• Relays for Megasquirt power, Fuel pump relay, and Idle control
• Coolant Temp sensor
• Intake Air Temp sensor
• Fuel rail
• Injectors
• Injector Cups - 037 133 555 A
• Fuel lines - get Fuel Injection lines (high pressure capacity) in 5/16 for VW stock rail
• Fittings or adaptors to make your fuel lines attach to your stock fuel lines
• Ignition system of some sort
• If the car has ITBs, then they will need to have a TPS (Throttle position sensor)
  • -----If you would like to datalog the TPS on your non-ITB car, you can get a Passat 16v automatic throttle body that will bolt to your stock manifold-----
• The connectors for any of the sensors and parts. You can get most of them from a salvage yard, or buy them online.
• A new intake tube setup and filter. This can be as simple as keeping your stock intake tube and throwing a cone filter on the end.
• A new oxygen sensor. A Wideband controller (such as an Innovate LC-1) and sensor are HIGHLY recommended.

The 16v in the US market never had electronic fuel injectors - the most advanced it got was Bosch Motronic CIS. The European ABF 16v was sold in europe with Electronic Injection, however, the manifold and fuel can be pricey!! To get EFI in a 16v, you have to go buy a custom fuel rail.

Back to Top

Megasquirt Links

Back to Top

EFI Diagrams

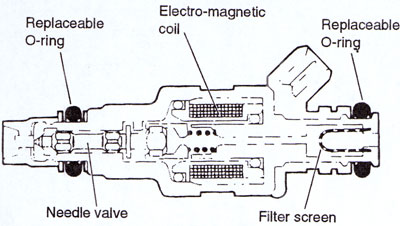

Bosch type Fuel Injector

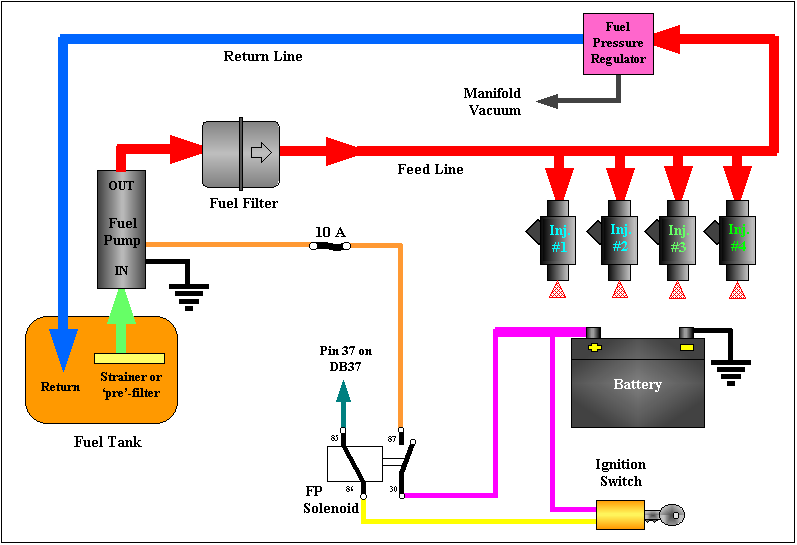

	Diagram of an EFI Fuel System

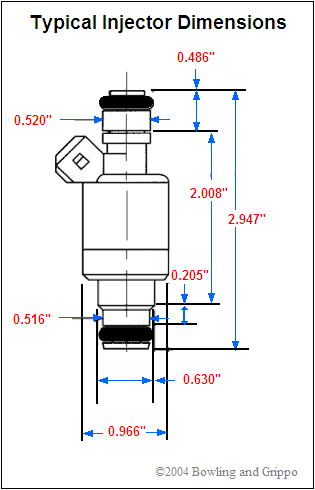

	Standard Injector Dimensions

Back to Top

Stock Fuel Injection system Diagrams

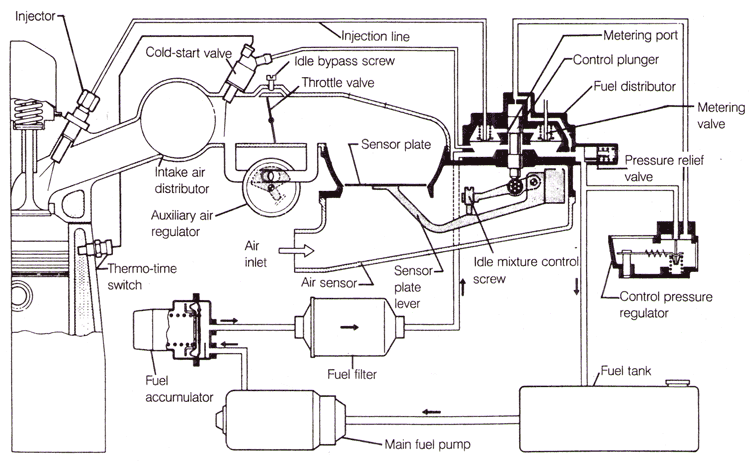

	Diagram of the CIS Jetronic System

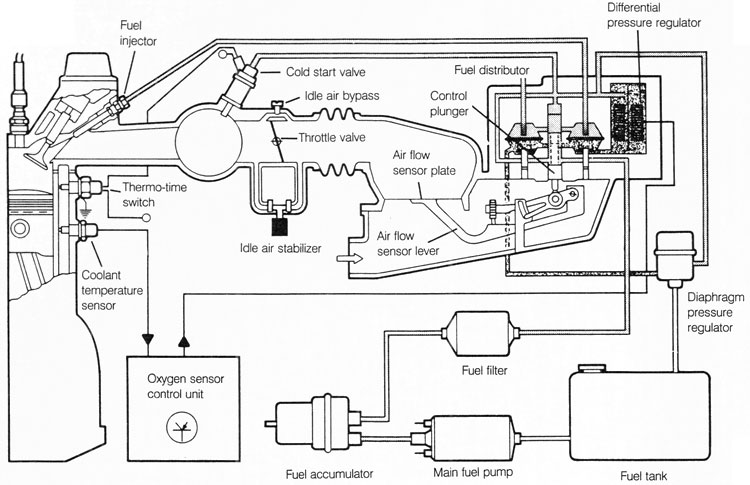

	Diagram of CIS-E Jetronic System

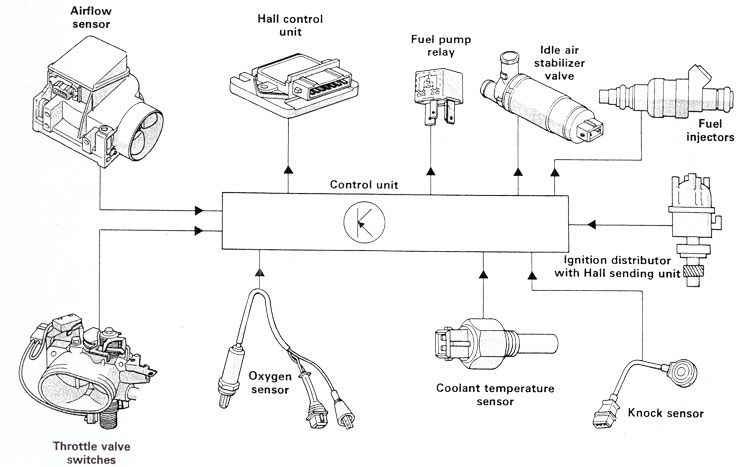

	Diagram of the Digifant II system

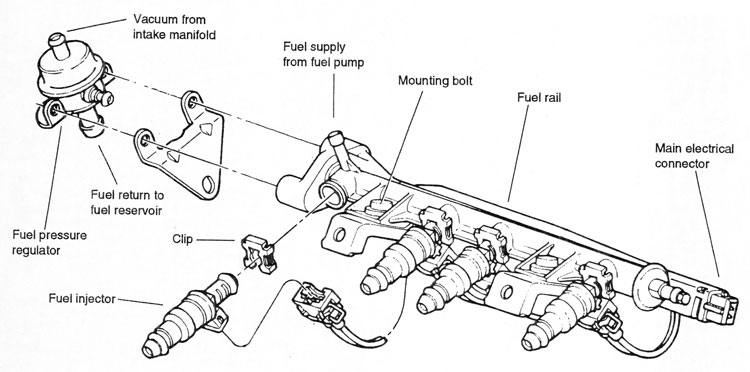

	Digifant II Fuel Rail
